IAC-IMX8MM-CM

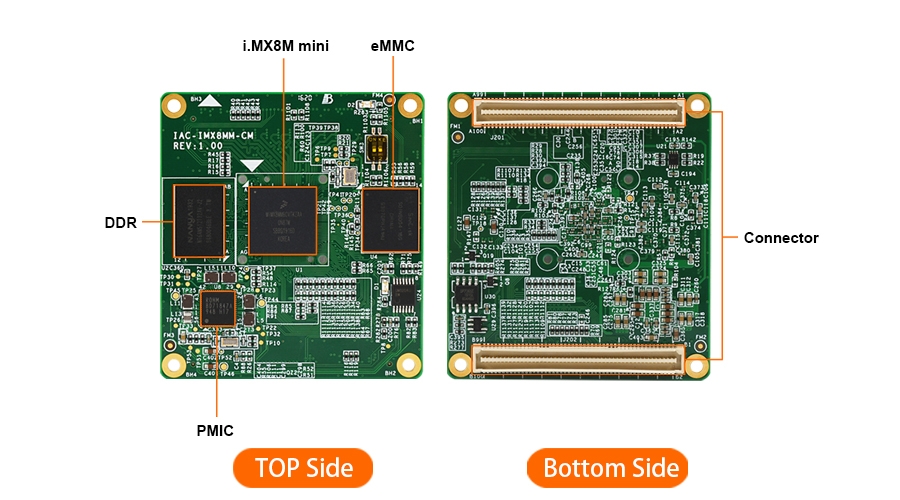

CPU: NXP i.MX8M MINI
Architecture: 4*Cortex-A53+1*Cortex-M4
Frequency: 1.8GHz
RAM: 2GB LPDDR4 (In Max.)
Flash: 8GB EMMC (16GB Opt. )
| Parameters | |||
|---|---|---|---|
| CPU | NXP i.MX8M MINI | Architecture | 4*Cortex-A53+1*Cortex-M4 |
| Frequency | 1.8GHz | RAM | 2GB LPDDR4 (In Max.) |
| Flash | 8GB EMMC (16GB Opt. ) | UART | 4*RS232, 2*UART Debug |

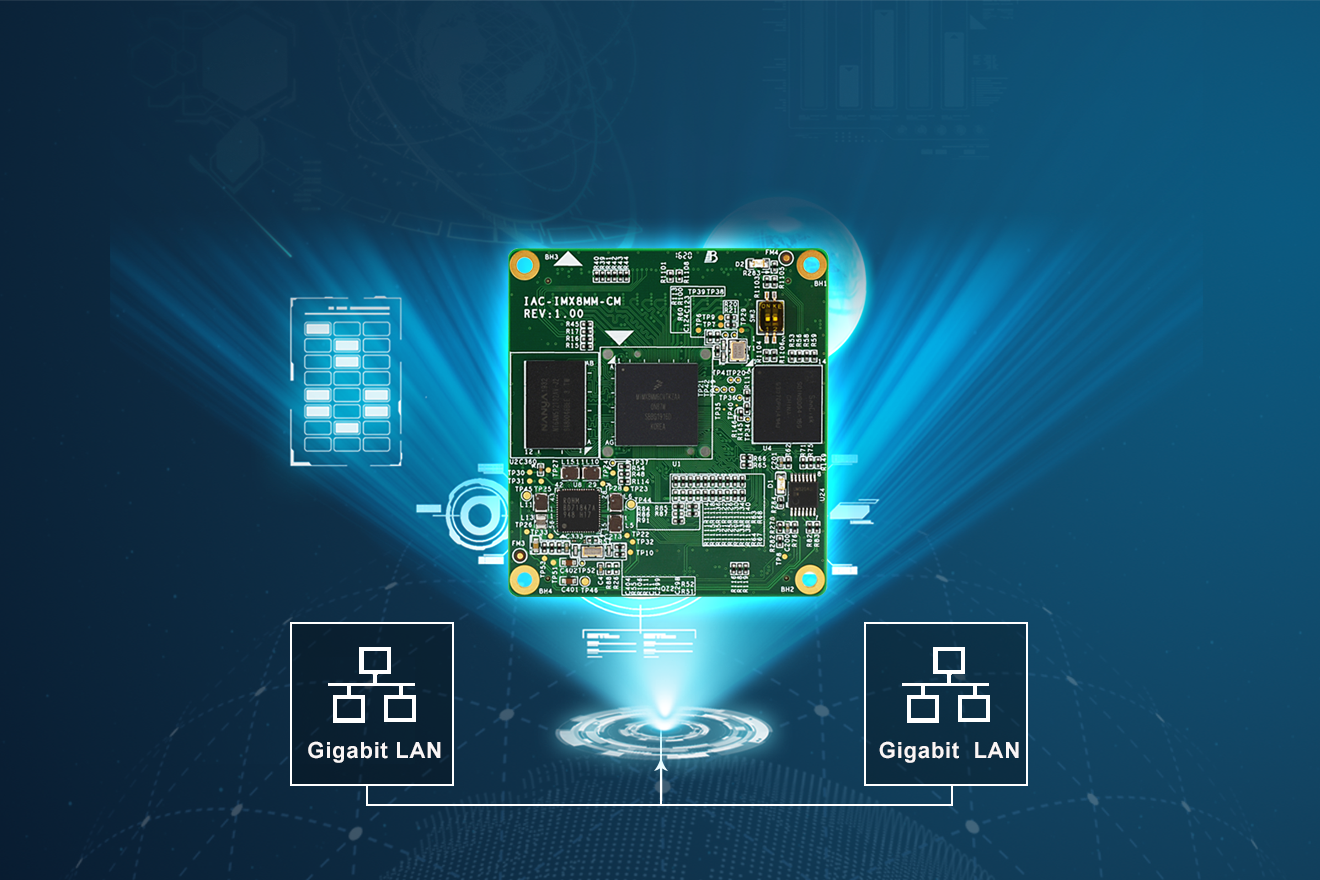

| CAN | 2*CAN 2.0 | Ethernet | 2*Gagibit Ethernet Port |
| USB | 4*USB 2.0, 1*USB-OTG | I2C | 3*I2C |
| Wi-Fi/BT | Onboard WIFI (AP6236) | Display Interface | 1*4-Lane MIPI, MAX. 1920*1200 |
| Camera | 1*CSI Camera | Audio | McASP Audio Interface; Binaural Output; MIC Audio Input |
| Extension Interface | MINI PCI-E interface; SIM card ; GPIO interface | Storage interface | 1*SD Card |
| Power Supply | +5V | Other | Reset Circuit, Watchdog, RTC, Buzzer, JTAG |

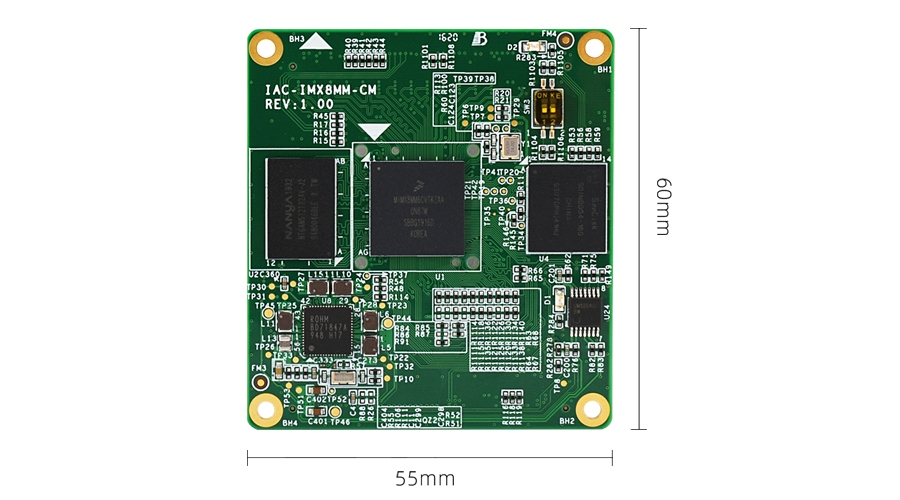

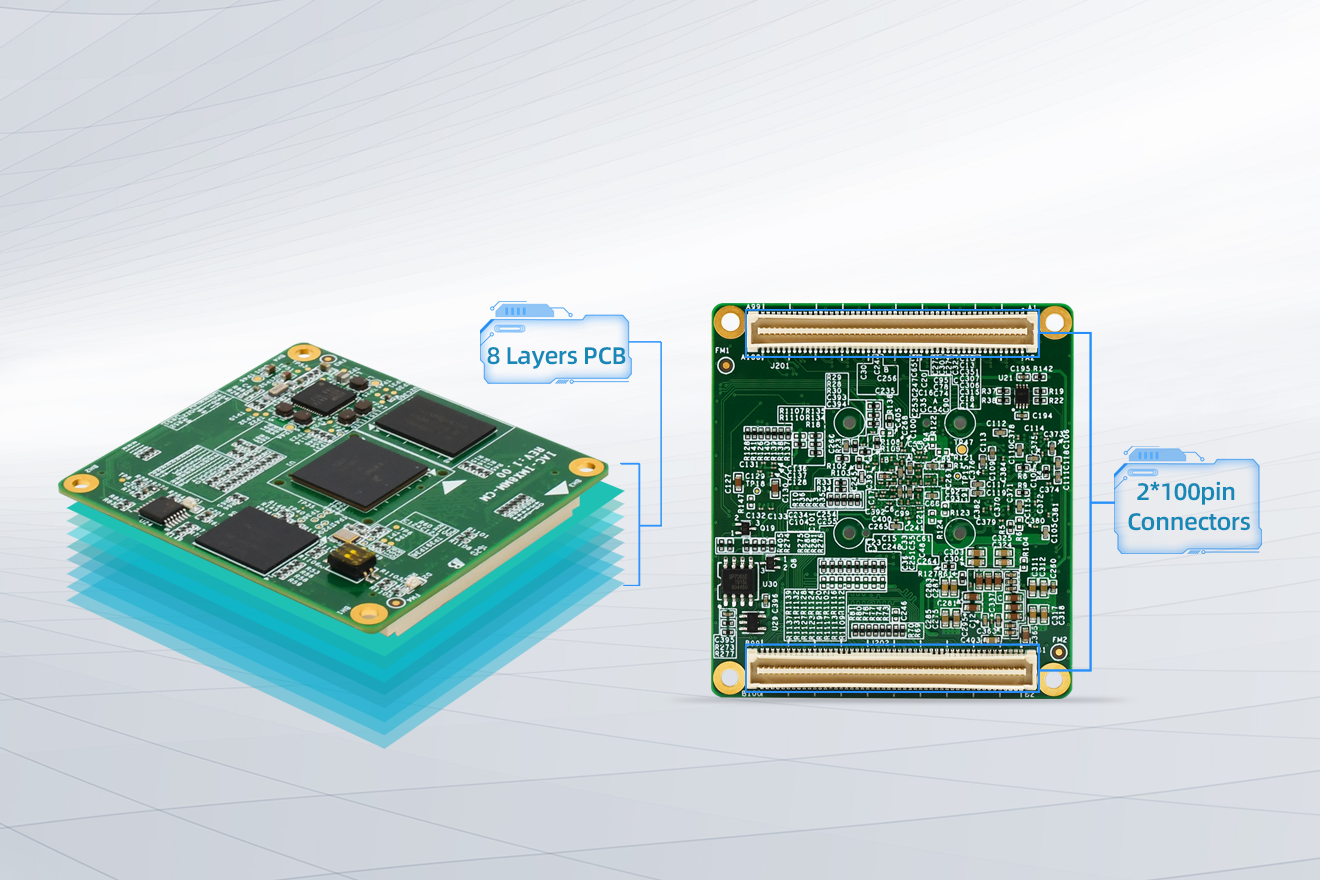

| Size | 60mm*55mm (8-Layer) | Operating System | Linux4.14.98+QT5.10.1;Android9.0 |
| Power Consumption | ≤2W | Operating Temperature | 0℃ ~ +70℃ (-40℃ ~ +85℃ Opt.) |
| Working Humidity | 5% ~ 95%, non-condensing | ||
